Newton
Premium vinyl window performance with features that make deluxe the standard.
Two multi-function, heavy duty die cast locks activate the integrated tilt feature. The hardware is engineered to facilitate easy cleaning while eliminating the need for unsightly tilt latches.
Neopor rigid thermal insulation contains heat reflecting graphite particles improving thermal efficiency.
Cove-crafted interior sash moulding combined with equal sight lines create an attractive traditional window styling.
Shadow grooved sash welds replicate the appearance of mitered wood corners
Newtons dual function partitioned slope sill forms a negative pressure pocket maximizing drainage and eliminating air infiltration.
Heavy duty extruded half screen, paired with UltraVue, high performance low visibility mesh, outperforms standard screens in strength, durability, and insect protection.
Vinyl Color Choices
Customize your home by selecting a vinyl color that complements its style and look. Optional decorative exterior paint finishes create the perfect curb appeal.

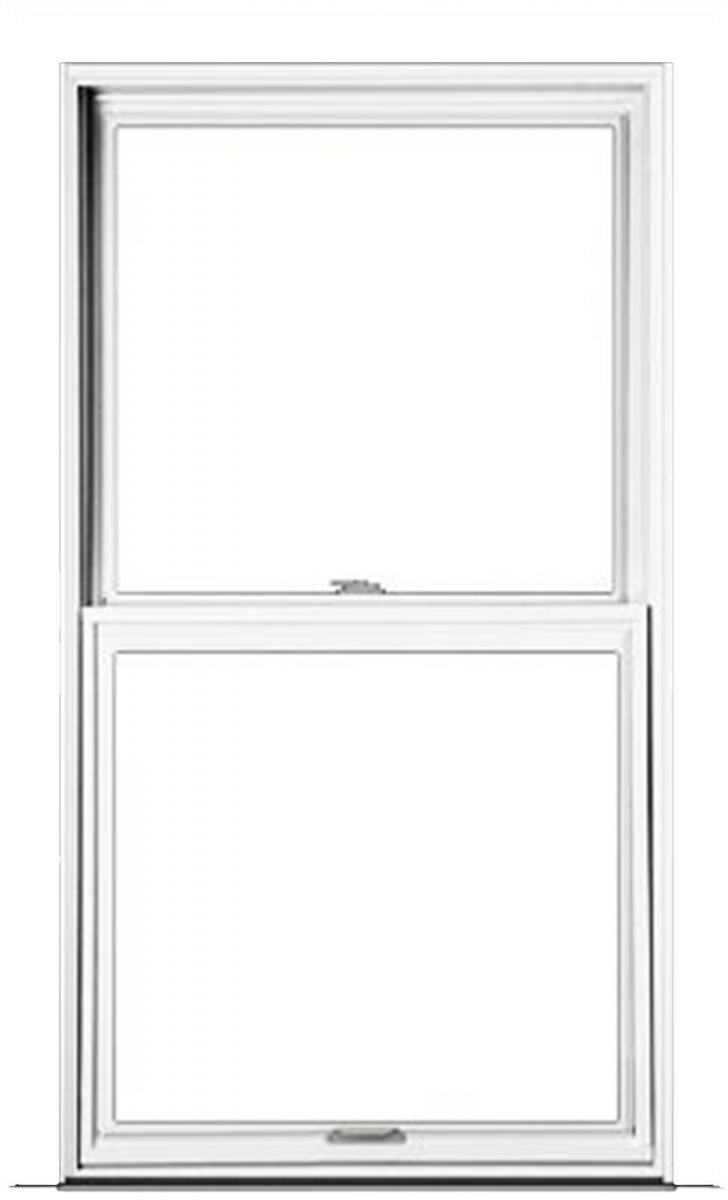

Color Selected: White
Color Options
Optional Painted Exterior Finishes
Our Limited Lifetime Warranty
We are committed to providing warranty coverage for the lifetime of each window and door.
Under our limited lifetime warranty, we cover from the date of manufacture that each window will be free of defects in materials and workmanship in such a manner that significantly impairs the operation and proper usage, subject to conditions and limitations.
This warranty is transferable to subsequent homeowners, up to the time limits of the warranty.
For more information download the Newton Series Brochure and Warrranty

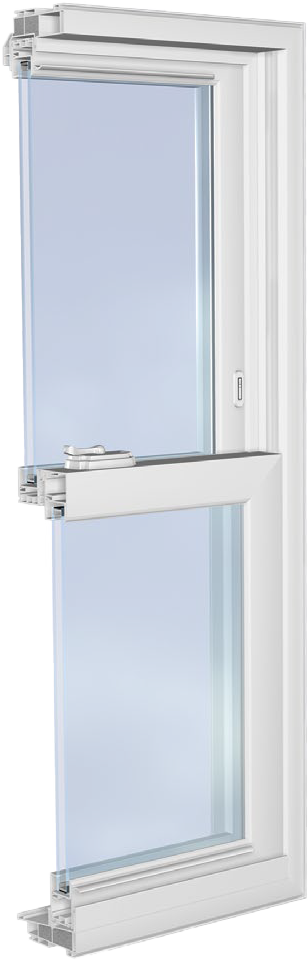

Standard Features
Hover over numbers for more information
1
Multi-chambered vinyl construction.
Maintenance-free vinyl provides superior strength and thermal efficiency yet wont weather, chip, warp or rot.
2
Fusion welded frame and sashes.
Four-point fusion welding ensures sashes and frames are square and true and the corners will never pull apart.
3
IdeaSeal triple protection.
Mylar fin triple weatherstripped sashes and an integral interlock with two rows of mylar fin weatherstrip, plus foam filled bulb seal means the elements stay out.
4
Dual function partitioned sloped sill with directional weep.
Newtons unique partition forms a negative pressure pocket that keeps the sash securely in place, even in the most adverse weather conditions.
5
Double strength dual pane IntelliGlass.
Optimal energy performance is further enhanced by an accidental glass breakage warranty. Triple pane options are also available.
6
Heavy duty extruded half screen with UltraVue mesh.
Smooth, wide face blends with window exterior. Interior spline is protected from UV damage.
7
Deluxe night ventilation locks.
Push-button activated secondary locks permit limited, secure opening of the window from the bottom or top. Meets ASTM F88-97 (Grade 10) forced entry resistance standards.
8
Beveled exterior profile.
The beveled exterior frame profile provides visual interest that complements any home style.
9
Cove-crafted sash interiors with integral pull rails.
Decorative cove details and even sightlines mimic traditional window styling for distinctive beauty.
10
Low profile dedicated head.
Deliberately engineered for strength and efficiency while maximizing daylight glass area.
11
Shadow groove welds.
Consistent weld quality emulates the look of finely crafted wood windows.
Newton windows come standard with a half screen with BetterVue mesh. Upgrade options include: Heavy Duty Half Screen with BetterVue, Full Screen with BetterVue, Half or Full FlexScreen with BetterVue, or Aluminum screen mesh
Available Options for Newton Series
Newton Series windows are available in 4 stunning window styles. All backed by our industry leading Limited Lifetime Warranty. Every window is custom made for your specific order by professionals who are invested in your satisfaction.
Double Hung

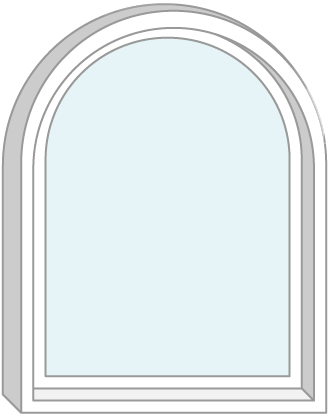

Specialty Shapes
Horizontal Slider
The needs of every home are different and with our specialized glass packages you can find the perfect fit. We offer both dual and triple pane glass options and can meet the EPAs stringent ENERGY STAR criteria depending on your geographic location. And by selecting our IntelliGlass Plus or IntelliGlass Supreme triple pane options, many of our products may qualify for Energy Stars Most Efficient 2020 .
Climate Zones: N, NC
Glass Panes: 2
Low-E Surfaces: 1
Airspace Filling: Argon
Climate Zones: NC, SC, S
Glass Panes: 2
Low-E Surfaces: 1
Airspace Filling: Argon
All 4 Climate Zones
Glass Panes: 3
Low-E Surfaces: 1
Airspace Filling: Argon
All 4 Climate Zones
Glass Panes: 3
Low-E Surfaces: 2
Airspace Filling: Argon
All 4 Climate Zones
Glass Panes: 3
Low-E Surfaces: 2
Airspace Filling: Krypton
Available in multiple profile and configurations, grid patterns are designed to further showcase your homes architectural style. Additional decorative options are available, including simulated divided lites.
Lifetime warranty includes accidental glass breakage.
Interior and exterior SDL packages
WOCD field applied angel locks
Colonial

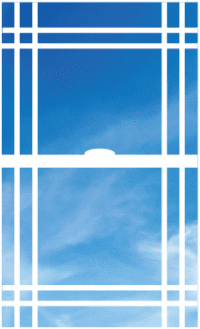

Double Perimeter

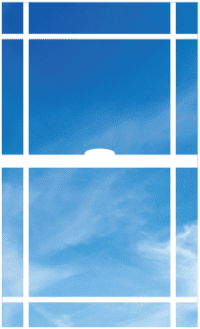

Perimeter

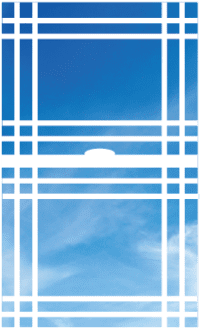

Double Prairie

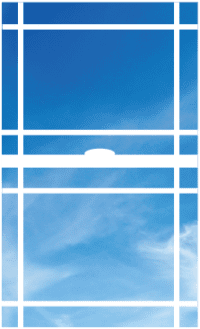

Prairie

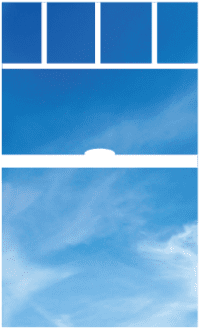

Valance
Profiles give the stylistic appearance of individual glass panes and are offered in multiple colors and styles.
Dual and Triple pane glass options are available to maximize efficiency in any climate
Tempered, Obscure and STC rated glass options
Foam frame wrap is available for increased insulation
4-9/16" or 6-9/16" white prime extension jamb

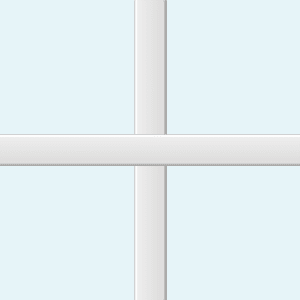

Flat (white & tan only) 5/8"

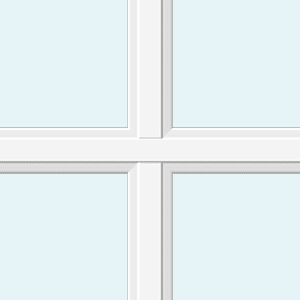

Georgian (color matched, interior/exterior) 3/4"

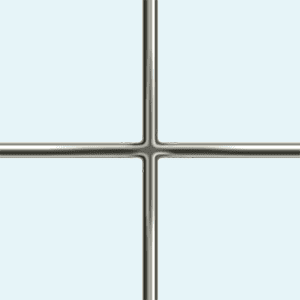

Pencil Pewter 3/16"
Vinylmax windows that are recognized as the Most Efficient of ENERGY STAR 2020 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency.
When ordered with a designated IntelliGlass triple pane glass package, the following Vinylmax products have been recognized by the EPA as Most Efficient in 2020.
Choice Series 4700
Edison Series 4600
Franklin Series 4700
Newton Series 4800
Prestige Series
Idea Series NC4600
Radiance Plus 4600
